Specification |
||

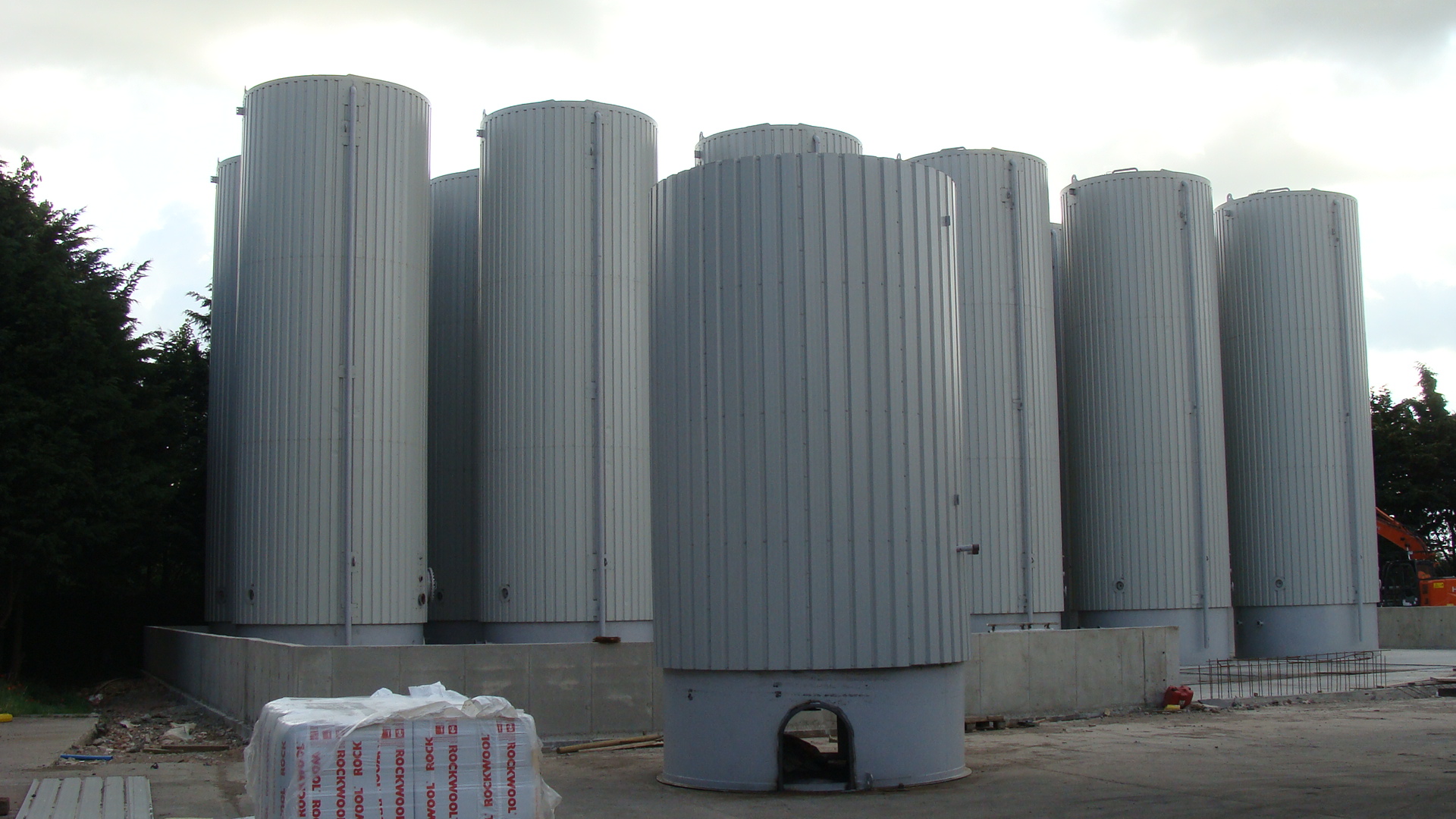

| CONSTRUCTION | Vertical cylindrical, dished end or cone top and bottom, on welded skirt with base angle ring. | |
| COMPARTMENTS | Single, double or multi-compartment | |
| DESIGN CODE | EN14015 and generally to BS799:Pt 5, Type ‘D’ | |
| CAPACITY RANGE | Only subject to road movement limits | |
| STEEL GRADE | BSEN 10025 S275JR (stainless options also available). | |
| STEEL THICKNESS | Shell 6mm, top and bottom dished ends or cones 6/8mm | |
| TESTING | As per design code. | |
| FITTINGS | As per Client requirements. | |
| FINISHFINISH | – Internal | Self colour, cleaned out (special paint finish if required) |
| – External | As per Client requirements. | |
| LIFTING LUGS | 2 or 4, depending on tank size | |
